Mould Temperature Controller

Stable Mould Temperature

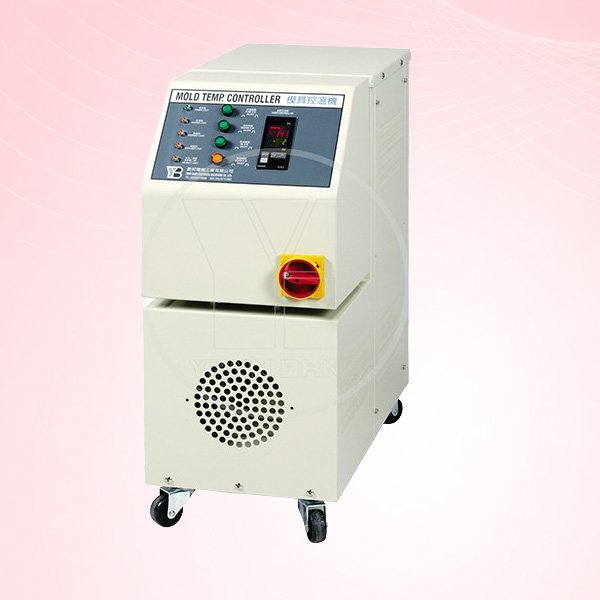

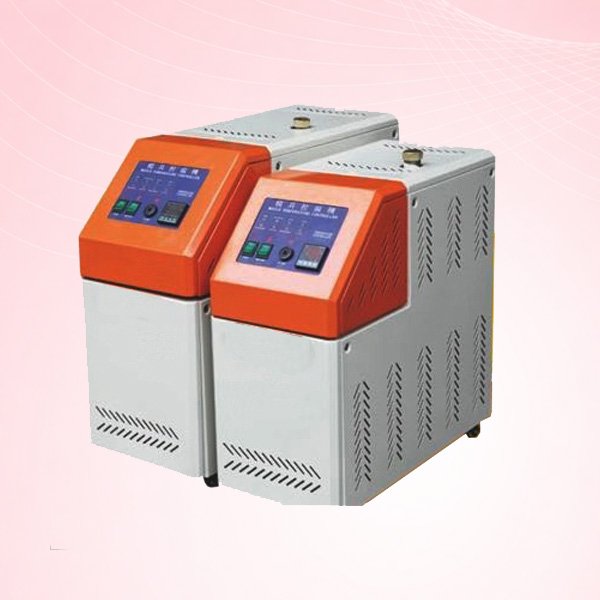

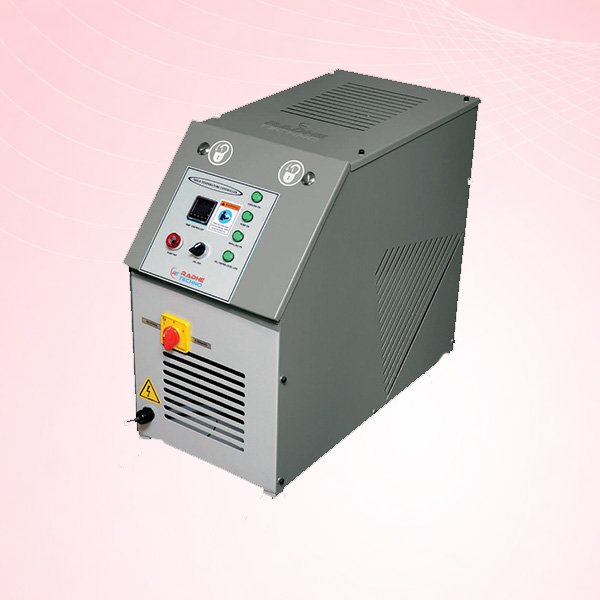

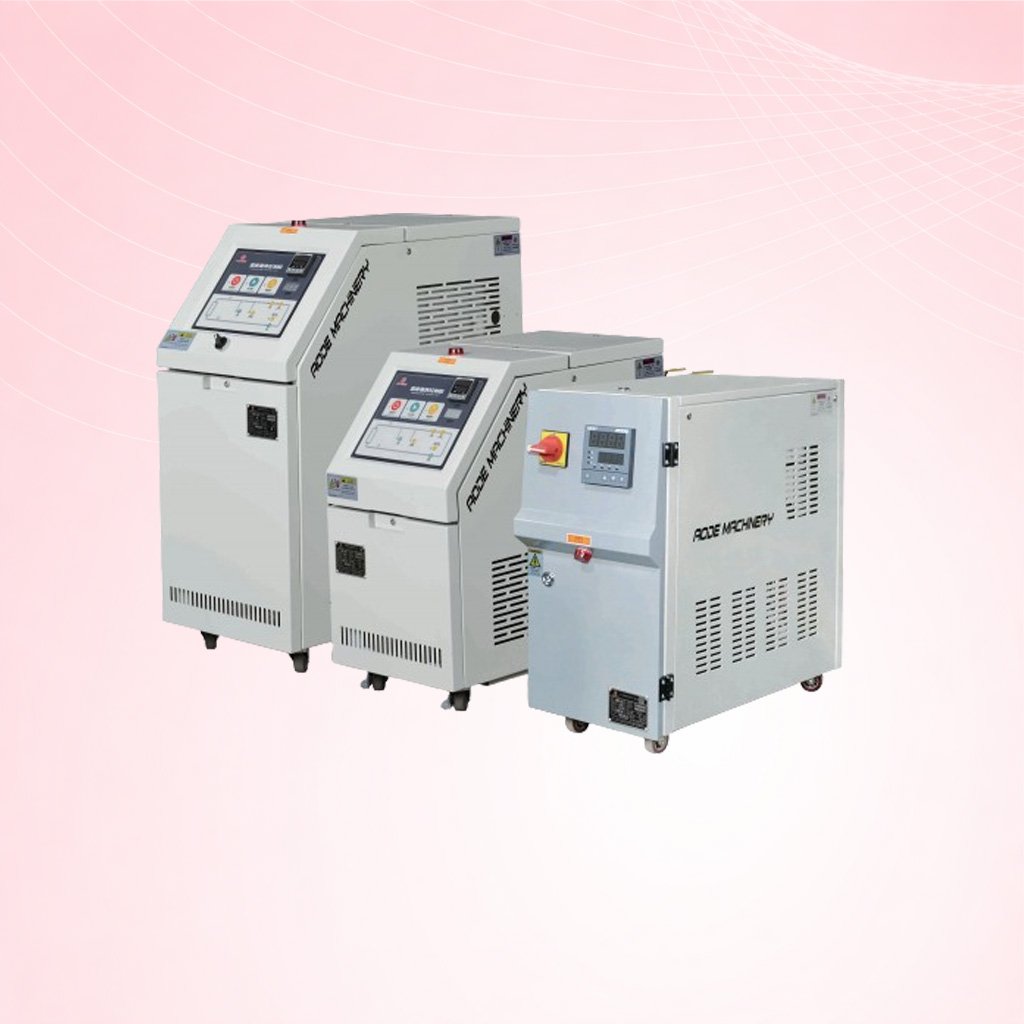

A Mould Temperature Controller is used in the plastic molding industry to maintain the correct temperature of molds during production. It circulates heated water or oil through the mold to ensure stable and uniform temperature control. This helps improve product quality, reduce cycle time, and prevent defects such as warping or uneven surfaces. The system is designed with advanced temperature control features, durable components, and user-friendly operation for reliable performance. Mould temperature controllers are widely used in injection molding and other plastic processing applications, ensuring consistent heating and cooling conditions that enhance production efficiency and maintain the overall quality of finished plastic products.

Model	Fluid Medium	Capacity Approx	Max Temp	Housing Capacity KW	Pump Rate L/Min	Pump Head Mts	Approx Dimension MM	Approx Weight Kgs
HE – 1	Oil	18 – 25	150 C	3	65	10	1000 400 850	75
HE – 2	Oil	18 – 25	150 C	4	65	10	1000 400 850	75
HE – 3	Oil	20 – 25	150 C	6	65	10	1000 400 850	75
HE – 4	Oil	20 – 30	150 C	8	65	10	1000 400 850	75
HE – 5	Oil	25 – 30	150 C	9	65	10	1000 400 850	75
HE – 6	Oil	30 – 35	150 C	12	65	10	1000 400 850	75
HE – 7	Oil	35 – 40	150 C	16	100	10	1200 500 850	85

Model

Fluid Medium

Capacity Approx

Max Temp

Housing Capacity KW

Pump Rate L/Min

Pump Head Mts

Approx Dimension MM

Approx Weight Kgs

HE – 1

Oil

18 – 25

150 C

1000 400 850

HE – 2

Oil

18 – 25

150 C

1000 400 850

HE – 3

Oil

20 – 25

150 C

1000 400 850

HE – 4

Oil

20 – 30

150 C

1000 400 850

HE – 5

Oil

25 – 30

150 C

1000 400 850

HE – 6

Oil

30 – 35

150 C

1000 400 850

HE – 7

Oil

35 – 40

150 C

100

1200 500 850
